Trace for VSPA via Serial Preprocessor (PACK)
OVERVIEW

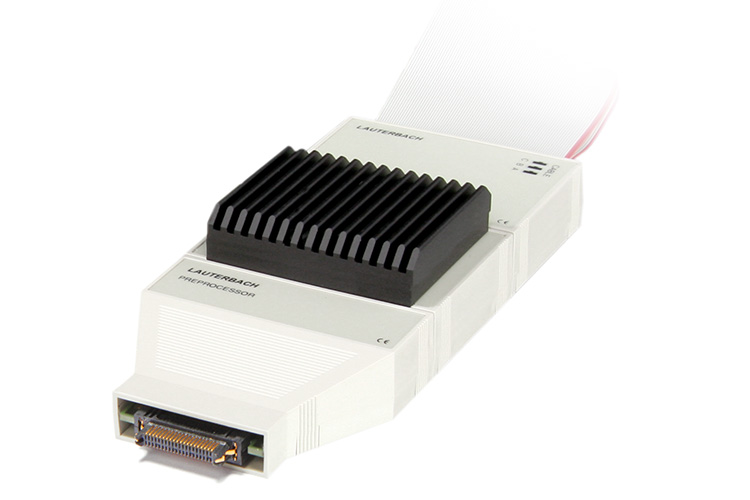

Trace for VSPA via Serial Preprocessor (PACK)
Product number:
LA-3344
Preprocessor for serial trace from VSPA processors.

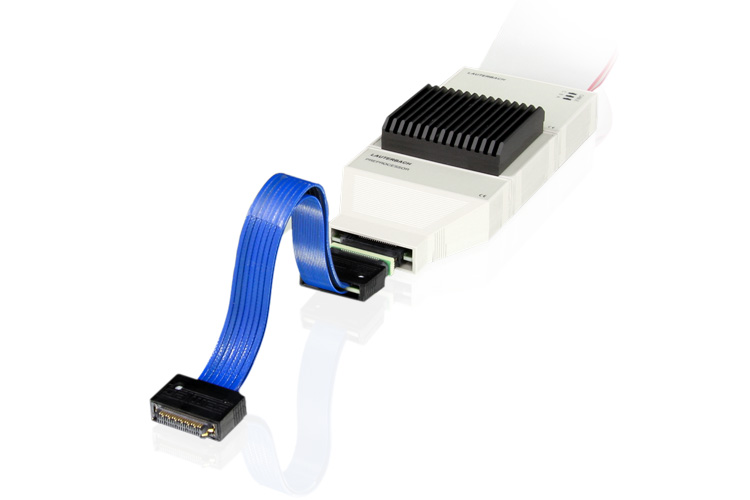

Includes Samtec 40-pin flex extension and software.
Records up to 3 lanes with 6.25 Gbit/s per lane
or 4 lane with 5.00 Gbit/s per lane.
Voltage range: 0.15 to 1.25 differential Voltage.
Requires PowerTrace II or PowerTrace III.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for VSPA via Serial Preprocessor (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Trace License for Xtensa® (AF-II/PTS)
- LA-7968A Trace License Qorivva MPC57xx and SPC57x/58x
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7967A Trace License for QorIQ PowerPC (PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-3799A Trace License for TriCore Add
- LA-7970A Trace License for Arm (AF-II/PTS)
