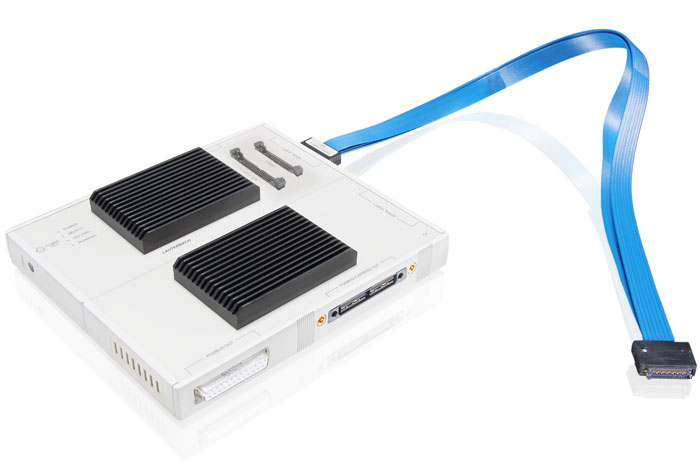

Trace for MPC57xx/SPC5 via PTS 8GB (PACK)
Trace for MPC57xx/SPC5 via PTS 8GB (PACK)

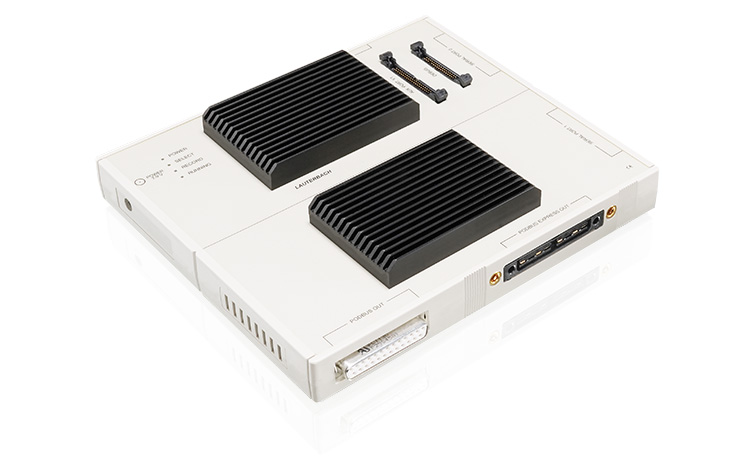

Trace recorder for serial high-speed ports
with 8 Gigabyte trace memory
for MPC57xx/SPC5xx
Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.)
Voltage range: 0.15 to 1.25 differential voltage.
For Samtec34 target connector add LA-3871:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34

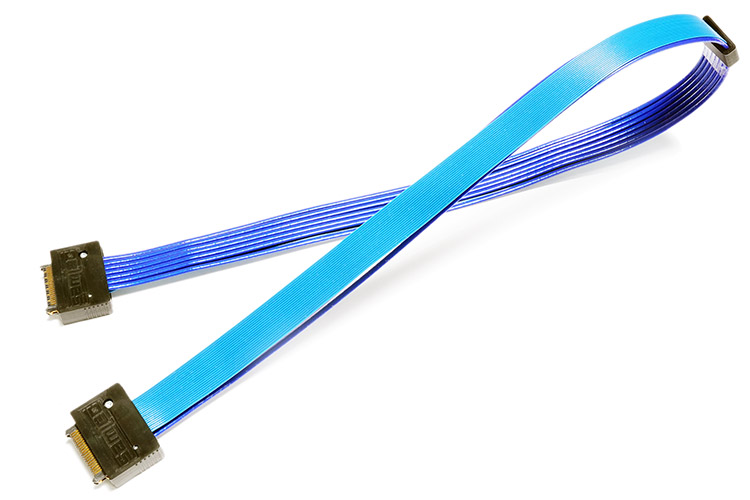

including Samtec 34-pin flex extension cable
For Samtec22 target connector add LA-3872:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22
including Samtec 22-pin flex extension cable
Requires PowerDebug X51/X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Trace for MPC57xx/SPC5 via PTS 8GB (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A RH850 Trace License (trace tool)
- LA-3550X PCIe License (tool locked)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2754A Xtensa® Trace License (trace tool)
- LA-3551X HSDP License (tool locked)
- LA-7979A C6000 Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-7967X QorIQ PowerPC Trace License (debug probe)
- LA-3914A ARC® Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
