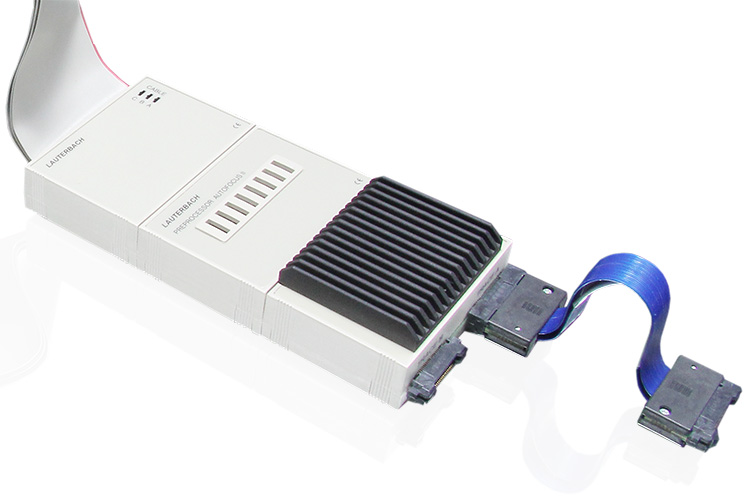

Trace for Arm-ETM via AUTOFOCUS II (PACK)
OVERVIEW
Trace for Arm-ETM via AUTOFOCUS II (PACK)
Product number:
LA-3308

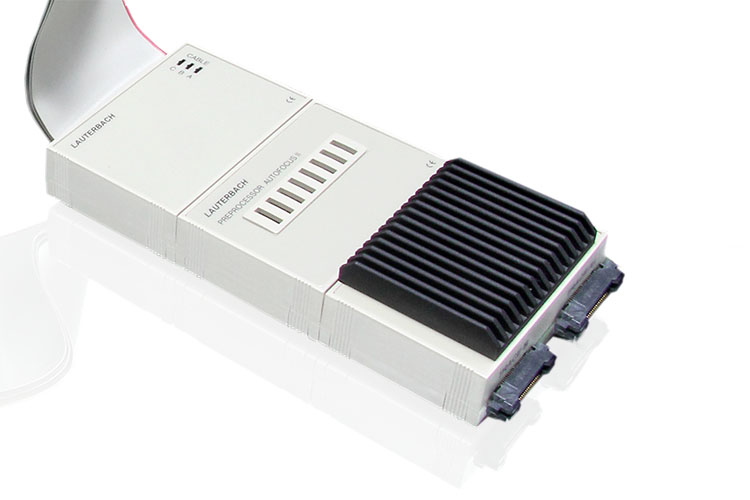

Parallel preprocessor for Arm/Cortex
Embedded Trace Macrocell (ETM),
Program Trace Macrocell (PTM)

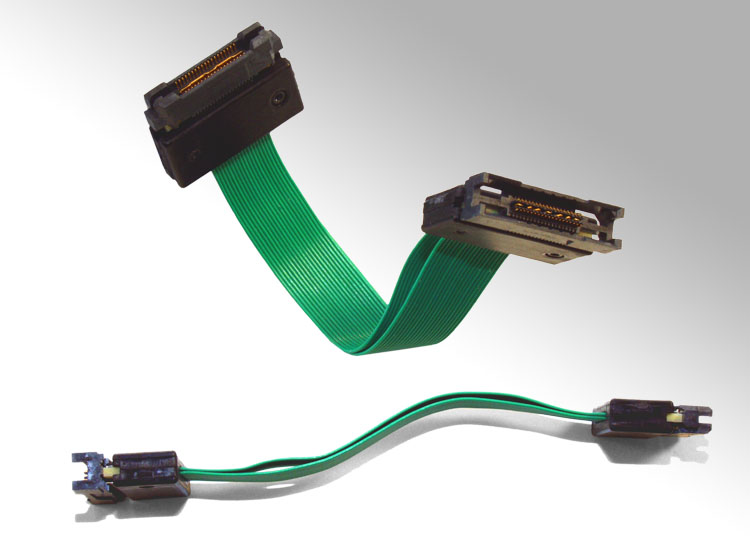

Connector cable and software,
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Support all ETM modes, with 2 MICTOR connectors,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector
Requires PowerTrace II / III, PowerTrace PX
or PowerTrace/Ethernet Version 6 or higher
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for Arm-ETM via AUTOFOCUS II (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3550X License for PCI Express
- LA-2767A Trace License for RISC-V (AF-II/PTS)
- LA-3904A Trace License for TEAKLITE-III AUTOFOCUS II
- LA-3902A Trace License for SH2A, SH4, SH4A in AF II
- LA-7999A Trace License for StarCore AUTOFOCUS II
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-2901A Trace License for VSPA (AF-II/PTS)
- LA-3901A Trace License for MicroBlaze AUTOFOCUS II
- LA-3914A Trace License for ARC® (AF-II/PTS)
