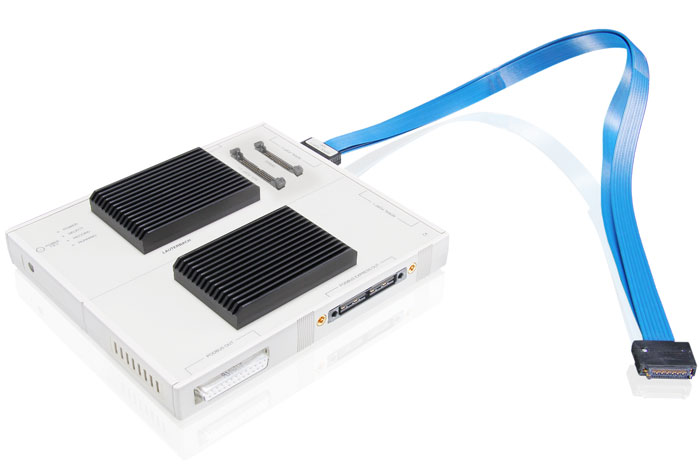

Trace for MPC57xx/SPC5 via PTS 4GB (PACK)
Trace for MPC57xx/SPC5 via PTS 4GB (PACK)

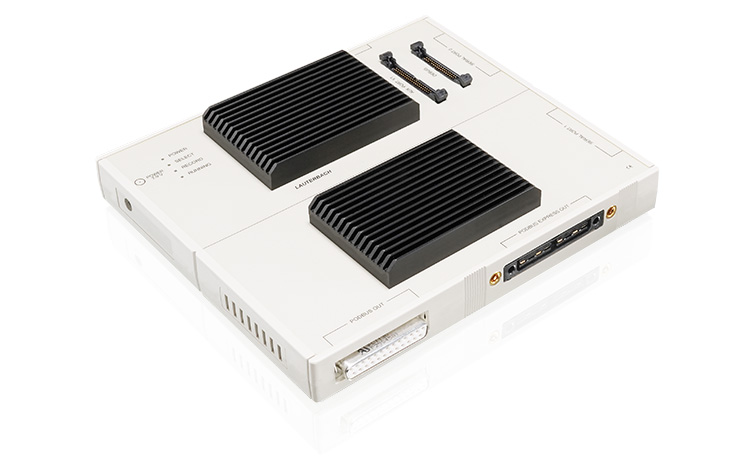

Trace recorder for serial high-speed ports
with 4 Gigabyte trace memory
for MPC57xx/SPC5xx
Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.)
Voltage range: 0.15 to 1.25 differential voltage.
Includes converter for Samtec40 target connector.
For Samtec34 target connector add LA-3871:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34

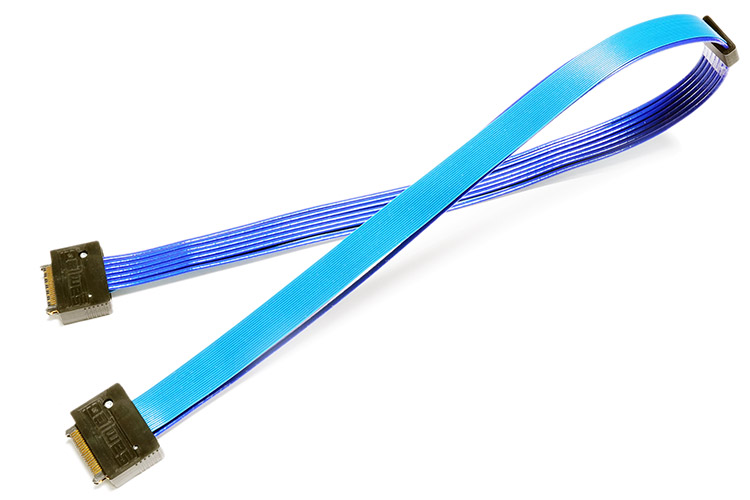

including Samtec 34-pin flex extension cable
For Samtec22 target connector add LA-3872:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22
including Samtec 22-pin flex extension cable
Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Trace for MPC57xx/SPC5 via PTS 4GB (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A Trace Support for RH850
- LA-3550X License for PCI Express
- LA-2767A Trace License for RISC-V (AF-II/PTS)
- LA-2754A Trace License for Xtensa® (AF-II/PTS)
- LA-3551X License for HSDP
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7967A Trace License for QorIQ PowerPC (PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-2901A Trace License for VSPA (AF-II/PTS)
- LA-3914A Trace License for ARC® (AF-II/PTS)
- LA-3799A Trace License for TriCore Add
- LA-7970A Trace License for Arm (AF-II/PTS)
