Standard Probe for PowerIntegrator
OVERVIEW
Standard Probe for PowerIntegrator
Product number:
LA-7945

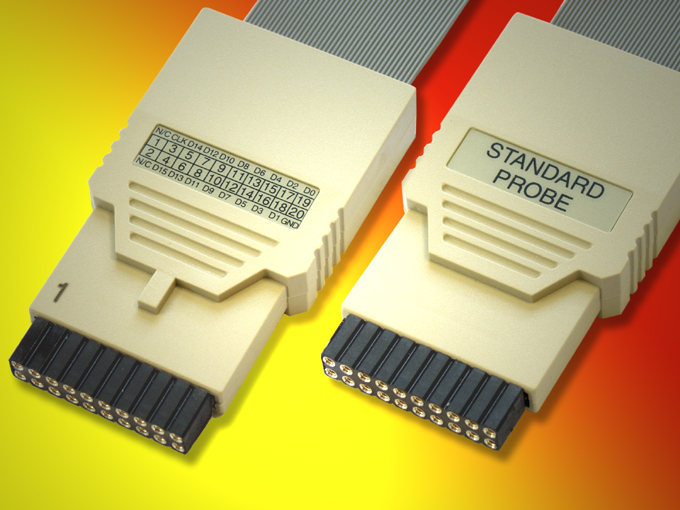

Probe to record digital signals from a 20 pin IDC connector:
17 Channels (16 Data, 1 Clock),
0..5 V Input, 4 pF, 50 KOhm.
The probe requires one of the following modules.
PowerIntegrator (LA-7940), PowerIntegrator II (LA-3940/3941/3942),
PowerTrace II (LA-7692/7693/7694),
PowerTrace Serial (LA-3120/3520/3555/3560).
The probe is not suitable for
PowerTrace III (LA-2520/2521), PowerTrace II Lite (LA-3580/3581),
PowerTrace Serial 2 (LA-3121/3122),
CombiProbe 2 (LA-3060) and MicroTrace (LA-3050).
For those devices, you can use the Mixed-Signal Probe (LA-2500)
instead (except for PowerTrace II Lite).
Includes a 20 pin male-male adaptor.
