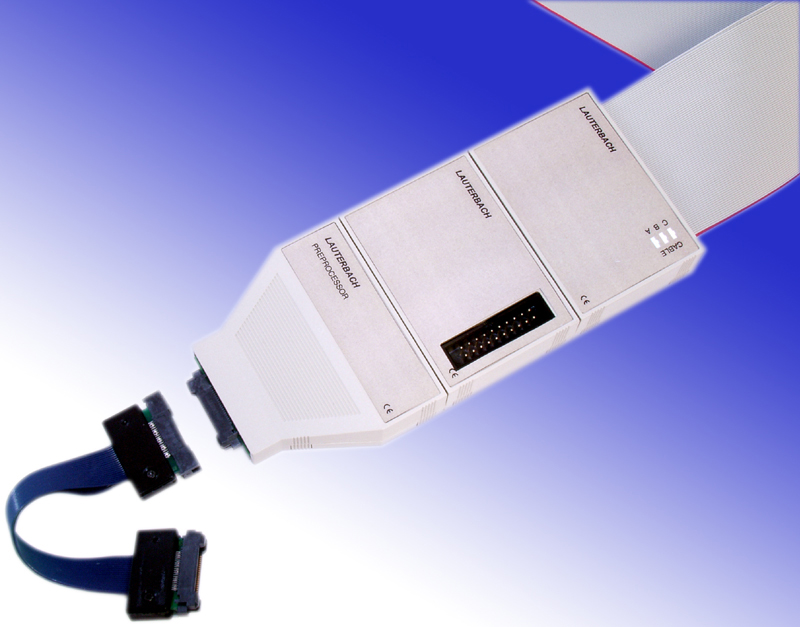

Preprocessor for ARM-ETM 200 flex cable
OVERVIEW
Preprocessor for ARM-ETM 200 flex cable
Product number:
LA-7921
Out of production
Preprocessor for ARM/Cortex
Embedded Trace Macrocell (ETM), Program Trace Macrocell (PTM),
200 MHz clock speed (200 Mbps), 4 x Trace-Depth, 0.9 to 3.6V.
Supports normal mode, 4 bit DeMux mode,
normal halfrate mode, Mux mode and 4 bit DeMux halfrate mode.
Support max. 16 bit trace port size.
3ns setup time, 1ns hold time needed.
ETMV3.x Continuous Mode only without idle-filter.
Requires PowerTrace II, PowerTrace PX or PowerTrace Ethernet.
Not supported by PowerTrace III.
Last TRACE32 release supporting this device is R.2023.02.
This product is discontinued and not available for purchase.
Superseded by LA-3308 Trace for Arm-ETM via AUTOFOCUS II (PACK)
Superseded by LA-3311 Trace for Arm-ETM via AUTOFOCUS II MIPI(PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preprocessor for ARM-ETM 200 flex cable
Available Converters
- LA-3814 ETMv3 Conv. Mictor-38/MIPI-34 to MIPI-60
- LA-3816 Converter 2x Mictor-38 to MIPI-60
- LA-3812 Conv. OMAP4 2xMic38/IDC20A/MIPI34 to MIPI60
- LA-3818 Converter 2xMictor38/IDC20A to MIPI-60
- LA-3768 ETMv1 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
- LA-3809 Converter Mictor-38/IDC20A to MIPI-20T
- LA-3769 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
