uTrace for Cortex-M

OVERVIEW

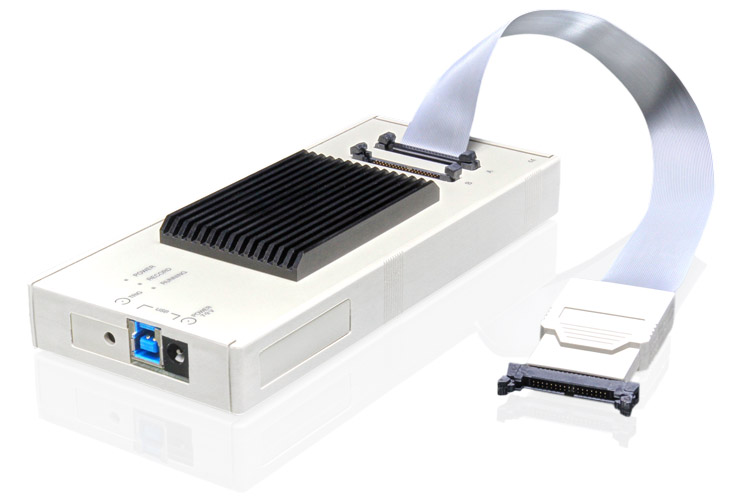

uTrace for Cortex-M

Product number: LA-4530
Out of production

Supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port for Arm Cortex-M cores

Bandwidth of 200 MBit/s per trace channel

includes 256-MByte of trace RAM to support:
- ITM via Serial Wire Output/TPIU
- ETM Cortex-M continuous mode via TPIU (4-bit)

Trace Streaming up to 100 MByte/s requires

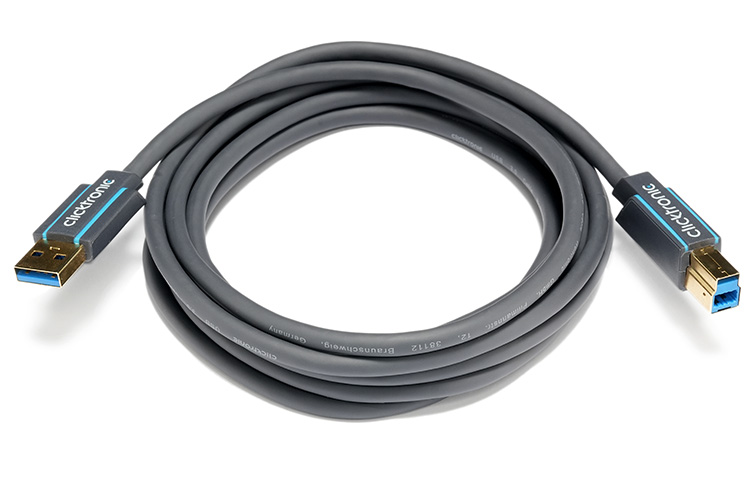

USB 3.0 (SuperSpeed) capable host computer

Concurrent debugging of two or more
Cortex-M cores requires a
License for Multicore Debugging (LA-7960X)

This product is discontinued and not available for purchase.
Superseded by LA-3204 MicroTrace for Cortex-M (PACK)
Add-ons

Extend the uTrace for Cortex-M

Allowed Licenses

The following licenses can be added to the product to support debug and/or tracing of other core architectures.
