Preproc. for C6000 AUTOFOCUS II MIPI60

Preproc. for C6000 AUTOFOCUS II MIPI60
OVERVIEW

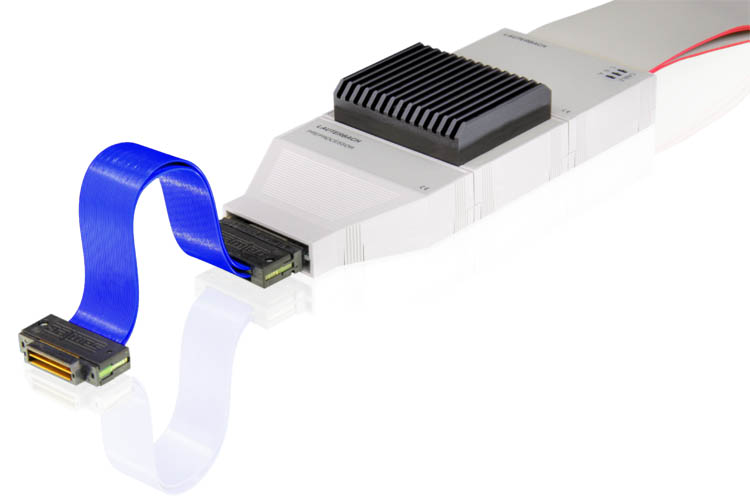

Preproc. for C6000 AUTOFOCUS II MIPI60

Product number: LA-3916
Out of production

Preprocessor for Real-Time Trace of C64x+

Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,

Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 60 pin Samtec connector (MIPI)

Requires PowerTrace Version 6 or higher
or PowerTrace II / III

This product is discontinued and not available for purchase.
Superseded by LA-3331 Trace for C6000 via AUTOFOCUS II MIPI (PACK)
Product Details

Technical Information

Technical Data

Pinout Specification

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information

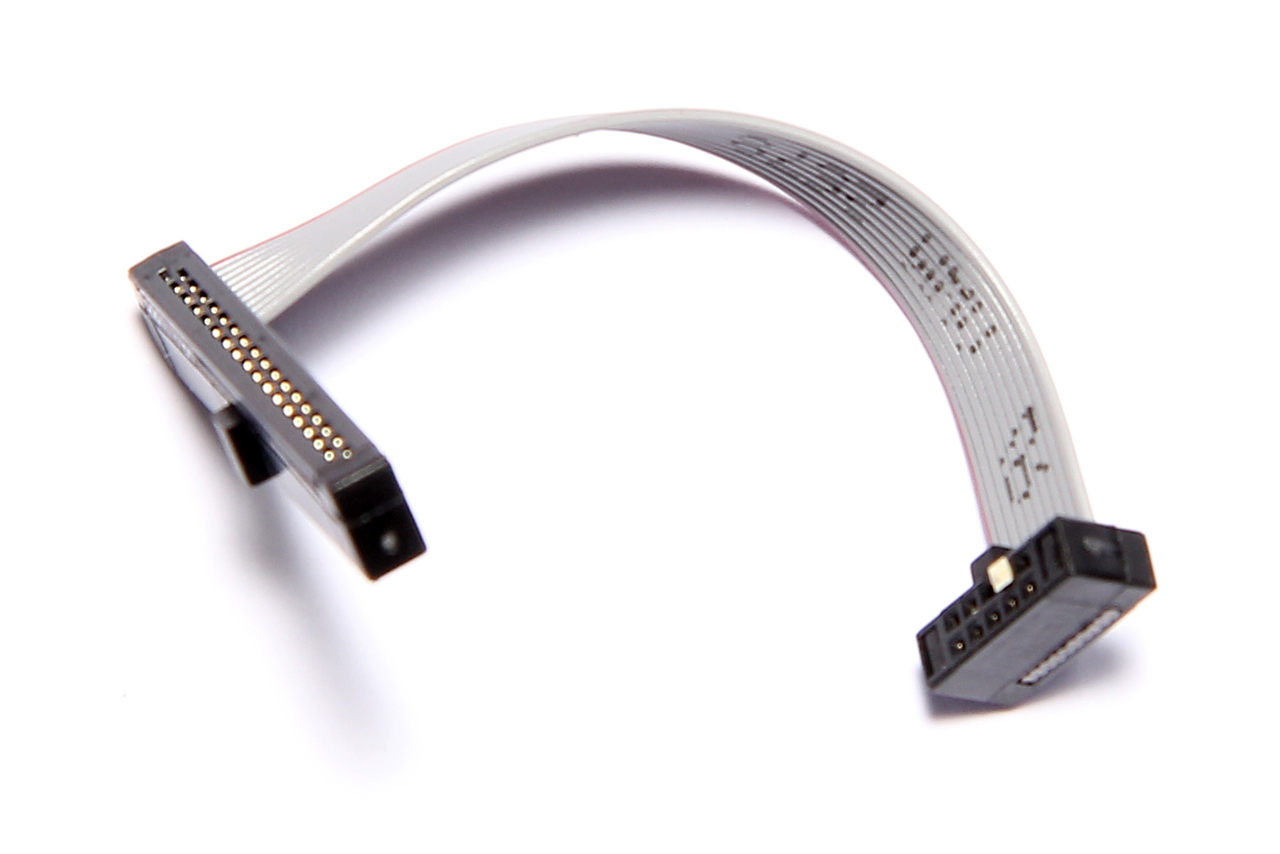

MIPI-Half-Size-Cable 34-10 MIPI-Half-Size-Cable 34-10
LA-1937
MIPI-Half-Size-Cable 34 MIPI-Half-Size-Cable 34
LA-1939

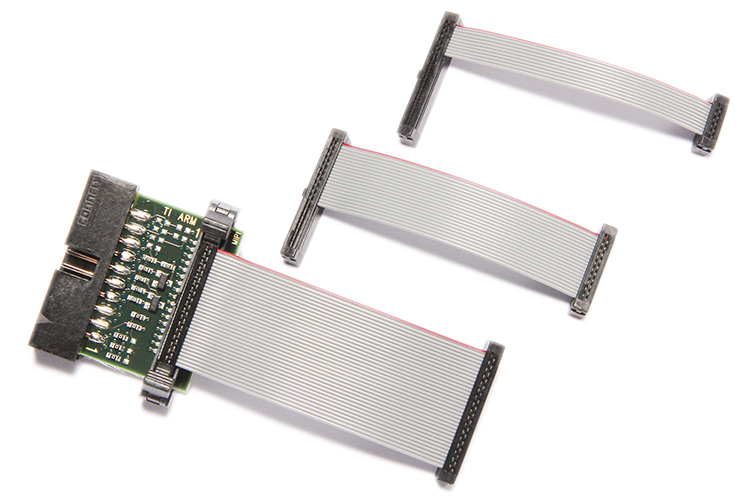

Converter IDC20A to MIPI-10/20/34 Converter IDC20A to MIPI-10/20/34 See pinout specifications
LA-3770
See pinout specifications

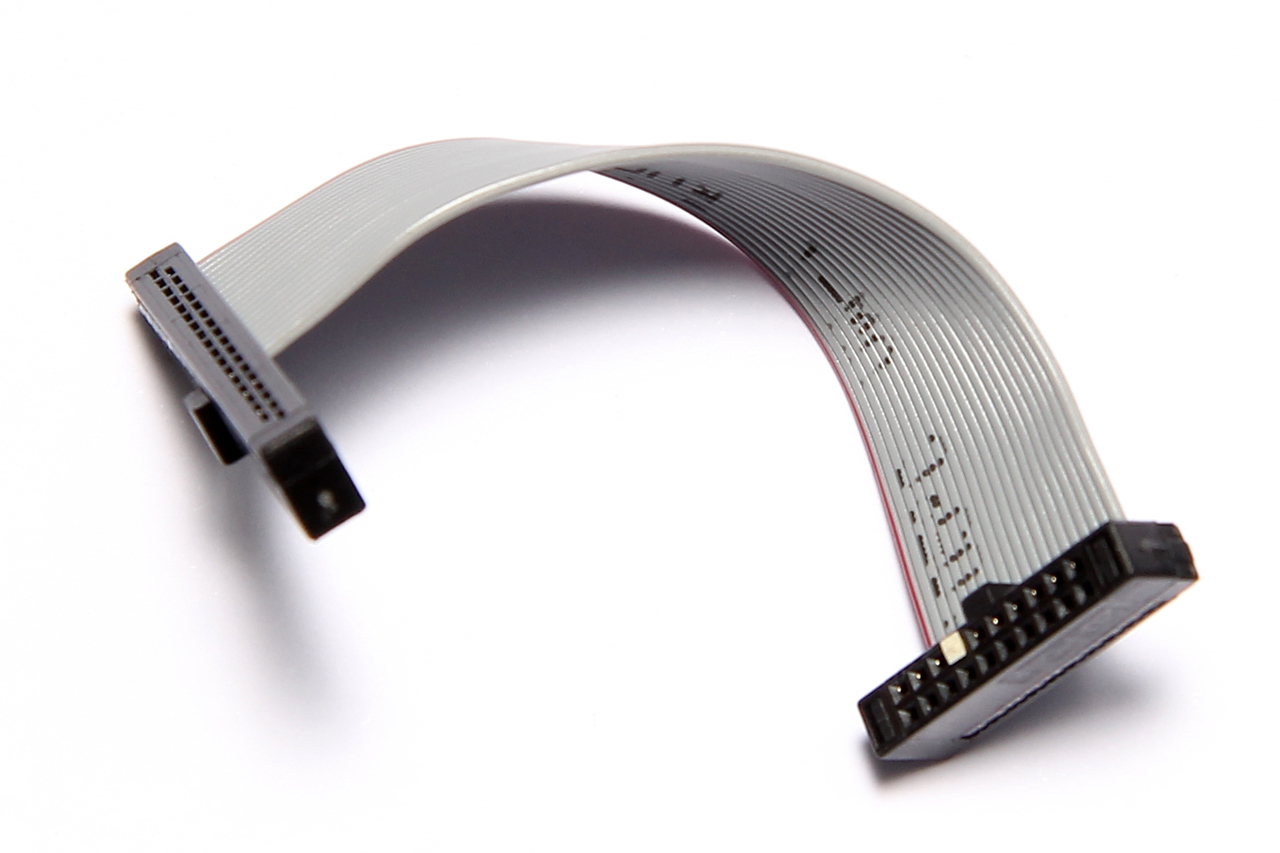

MIPI-Half-Size-Cable 34-20 MIPI-Half-Size-Cable 34-20
LA-1938

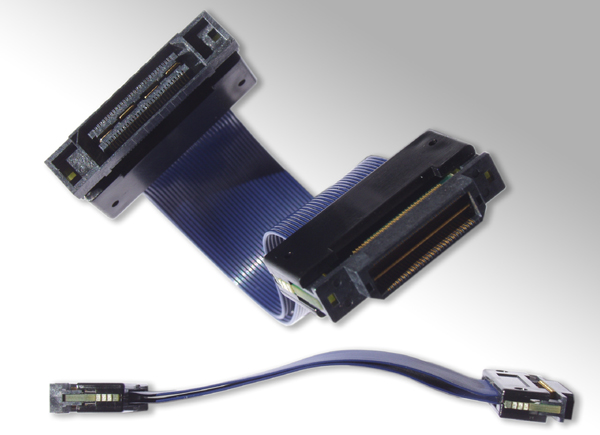

Flex Ext. for SAM 60 pin QTH-QSH series 05.00 Flex Ext. for SAM 60 pin QTH-QSH series 05.00
LA-1228
Add-ons

Extend the Preproc. for C6000 AUTOFOCUS II MIPI60
