Preproc. TriCore AGBT HF-Flex
Product number:
LA-3912
Out of production

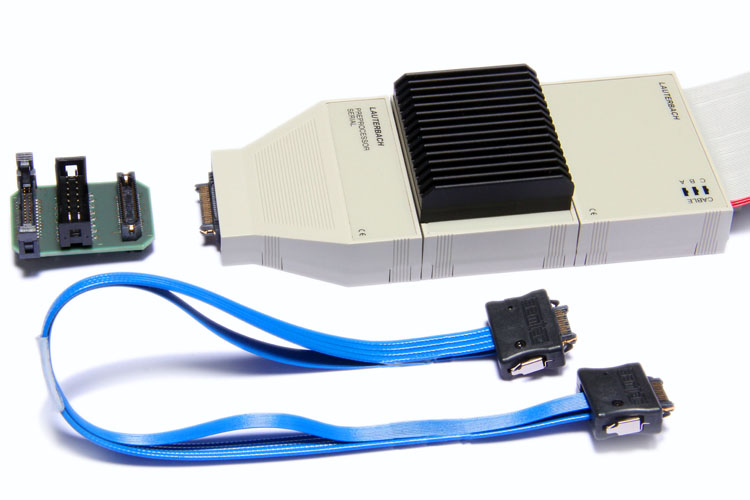

Preprocessor for TriCore Aurora Giga-Bit Trace
(Aurora high-speed trace)
POWER TRACE II / III: full support
Supported speeds per lane:
4 lanes @ 4.25Gbps
3 lanes @ 6.0Gbps
2 lanes @ 6.25Gbps
1 lane @ 6.25Gbps
POWER TRACE ETHERNET or POWER TRACE PX limited support
Supported speeds per lane:
4 lanes @ 1.25 GBPS
2 lanes @ 2.5 GBPS
- POWER TRACE ETHERNET module must have serial number
E04xxxxxxxx or higher
voltage range 0.15V to 1.25V
This product is discontinued and not available for purchase.
Superseded by LA-3304 Trace for TriCore via Serial PrePro (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. TriCore AGBT HF-Flex
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
