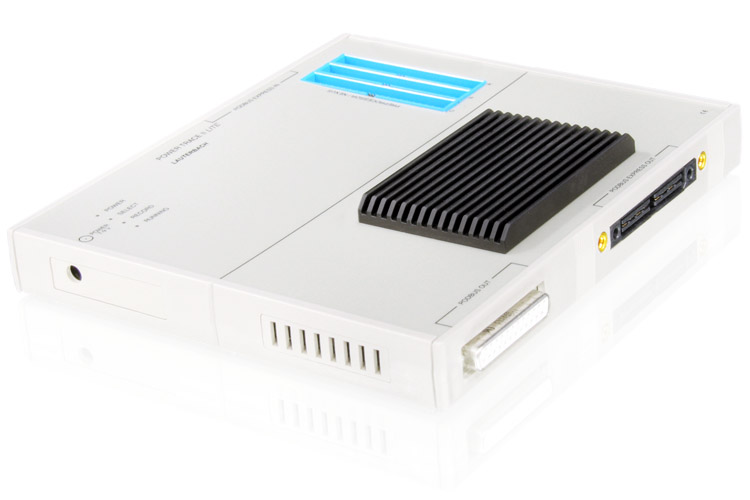

PowerTrace II LITE 1GB
OVERVIEW
PowerTrace II LITE 1GB
Product number:
LA-3581
Cost effective Trace Recorder
with 1 GigaByte trace memory
and a streaming rate up to 100 MByte/s.
Supports parallel trace for up to 36 signals via a suitable preprocessor
with the following maximum recording speed:
600+ Mbit/s per signal for 9 signals,
450 Mbit/s per signal for 17 signals,
225 Mbit/s per signal for 36 signals.
Supports serial trace for up to 4 lanes via a serial preprocessor
with the following maximum recording speed:
6.25 Gbit/s per lane for 2 lanes,
4.50 Gbit/s per lane for 3 lanes,
3.38 Gbit/s per lane for 4 lanes.
Requires a suitable trace preprocessor or Nexus Adapter.
Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II.
