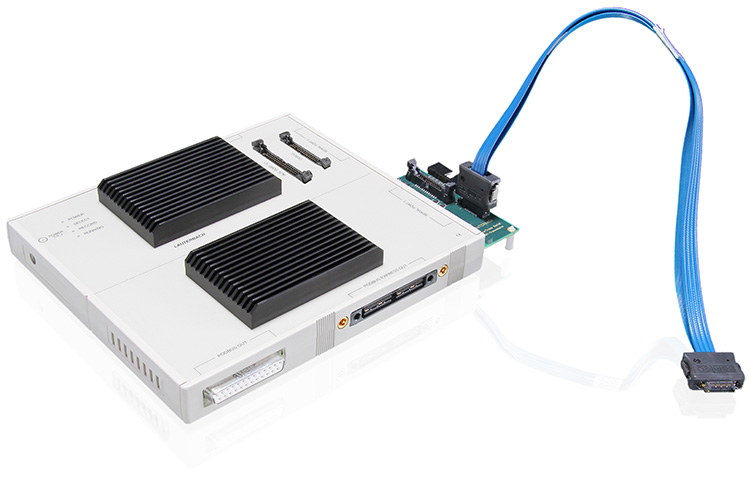

Trace for TriCore via PTS 4GB (PACK)
Product number:
LA-3306
Out of production

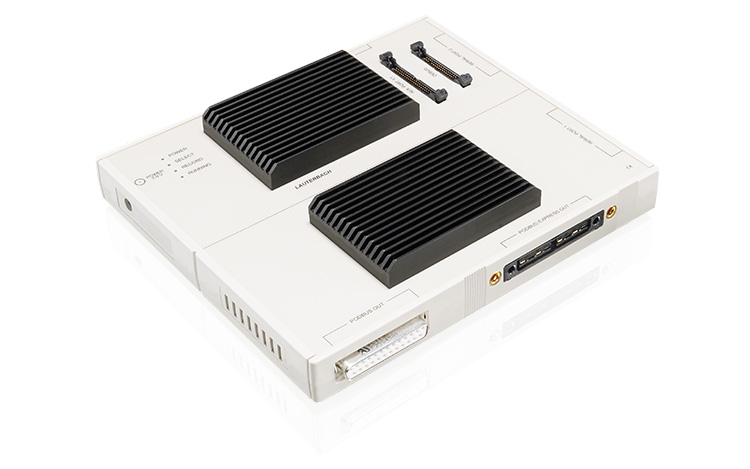

Trace recorder for serial high-speed ports
with 4 Gigabyte trace memory
for TriCore AGBT/SGBT.
Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.)
Voltage range: 0.15 to 1.25 differential Voltage.

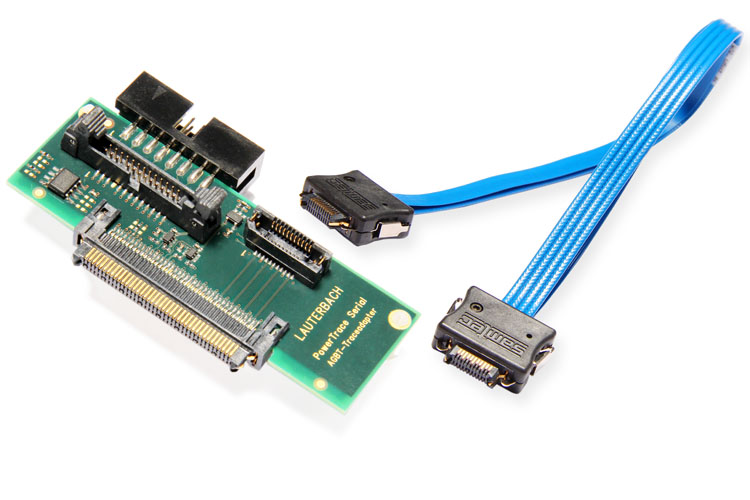

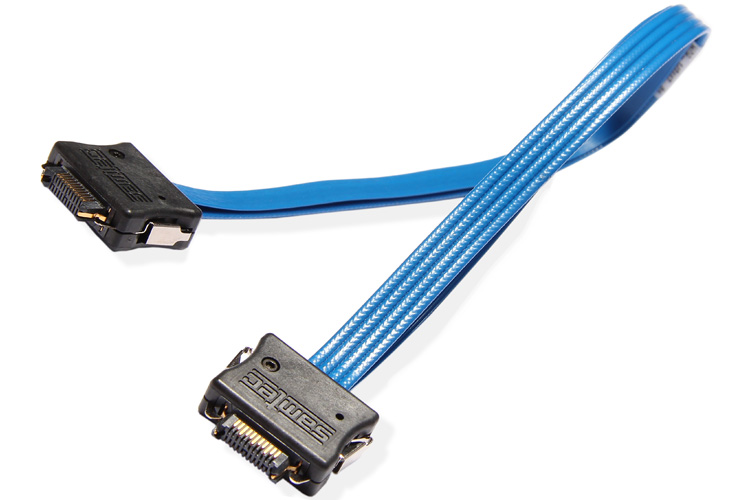

Includes AGBT Trace Adapter with flex-cable for ERF8-22 connector.
Requires LA-3596 if HSTCU connector is used instead.
Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
This product is discontinued and not available for purchase.
Superseded by LA-3325 Trace for TriCore™ via PT-Serial 4GB (PACK)
Superseded by LA-3326 Trace for TriCore™ via PT-Serial 8GB (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
LA-3556
Add-ons
Extend the Trace for TriCore via PTS 4GB (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A Trace Support for RH850
- LA-3550X License for PCI Express
- LA-2767A Trace License for RISC-V (AF-II/PTS)
- LA-3551X License for HSDP
- LA-7968A Trace License Qorivva MPC57xx and SPC57x/58x
- LA-7967A Trace License for QorIQ PowerPC (PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-7970A Trace License for Arm (AF-II/PTS)
