Debugger Cortex-M (Armv6/7/8-M) AUTO26 (PACK)
Debugger Cortex-M (Armv6/7/8-M) AUTO26 (PACK)

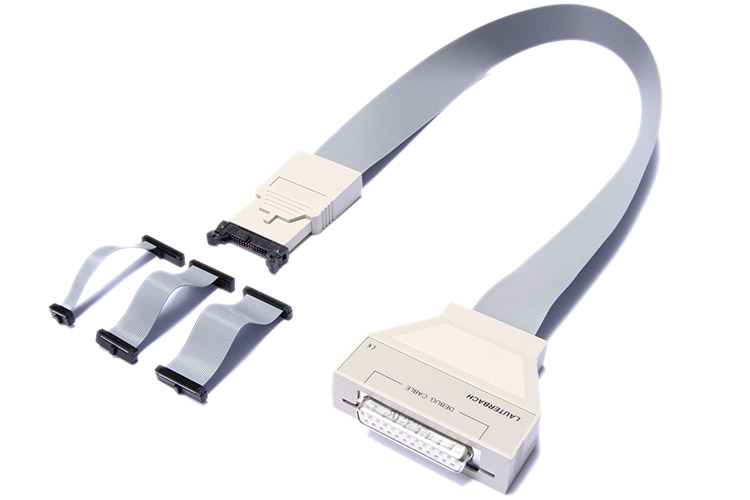

AUTO26 Debug Probe with debug license
to debug Cortex-M cores and SecurCore SC000/SC300,
via JTAG, cJTAG (IEEE 1149.7), or Serial Wire Debug (SWD).
We recommend ordering the IDC20A Debug Probe LA-3254 instead
(for Cortex-M based SoCs) because
IDC20A supports a wider voltage range for the debug signals, and
IDC20A supports a wider range of subcore architectures.
Includes licenses to debug and trace
Cortex-M cores and SecurCore SC000/SC300,
as well as debug GTM and IPU cores.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires TRACE32 R.2022.09-SP2 or newer.
Requires any PowerDebug with USB 2/USB 3/Ethernet and newer.
(Not supported with LA-7702 and LA-7704)
Voltage range 1.8V to 5.0V.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Debugger Cortex-M (Armv6/7/8-M) AUTO26 (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-2760A Debugger for dsPIC Add.
- LA-3732A OCDS Debugger for XC800 Additional
- LA-3730A Debug License for MicroBlaze Additional
- LA-7960X License for Multicore Debugging
- LA-7838A Debug License for C6000 Add.
- LA-7843X Debugger for Armv7-A/R Ext.
- LA-7753A JTAG Debugger for MPC5xxx (ICD) Additional
- LA-3760A Debug License for Xtensa® Add.
- LA-3719A Debugger for RH850 Additional
- LA-7847A Debug License for C2000 Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-3743X Debugger for Armv8/Armv9-A/R/X Ext.
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-2900X License for PIL Simulation (Cable)
