Debugger for Armv7-A/R AUTO26 (PACK)
Debugger for Armv7-A/R AUTO26 (PACK)

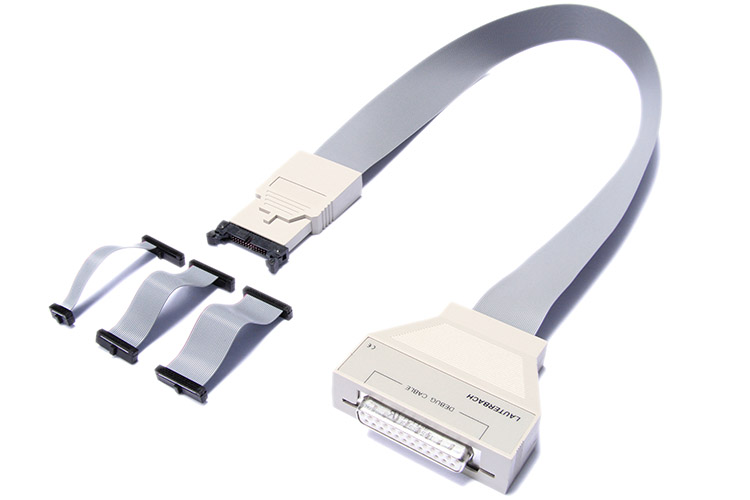

AUTO26 Debug Probe with debug license
to debug Armv7 based Cortex-A/R/X cores,
via JTAG cJTAG (IEEE 1149.7), or Serial Wire Debug (SWD)
We recommend ordering the IDC20A Debug Probe LA-3253 instead
(for Armv7-A/R based SoCs) because
IDC20A supports a wider voltage range for the debug signals, and
IDC20A supports a wider range of subcore architectures.
Includes licenses to debug Armv7 based
Cortex-A 32-bit cores and Cortex-R 32-bit cores,
as well as GTM and IPU cores.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires TRACE32 R.2022.09-SP2 or newer.
Requires any PowerDebug with USB 2/USB 3/Ethernet and newer.
(Not supported with LA-7702 and LA-7704)
To debug via Single Signal Debug Port (SSDP) by STMicroelectronics
you'll probably need to order an additional CAN-Box LA-3889.
Voltage range 1.8V to 5.0V.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Debugger for Armv7-A/R AUTO26 (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7844X Debugger for Cortex-M (Armv6/7/8-M) Ext.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-2760A Debugger for dsPIC Add.
- LA-3732A OCDS Debugger for XC800 Additional
- LA-3730A Debug License for MicroBlaze Additional
- LA-7960X License for Multicore Debugging
- LA-7838A Debug License for C6000 Add.
- LA-7753A JTAG Debugger for MPC5xxx (ICD) Additional
- LA-3760A Debug License for Xtensa® Add.
- LA-3719A Debugger for RH850 Additional
- LA-7847A Debug License for C2000 Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-3743X Debugger for Armv8/Armv9-A/R/X Ext.
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-2900X License for PIL Simulation (Cable)
