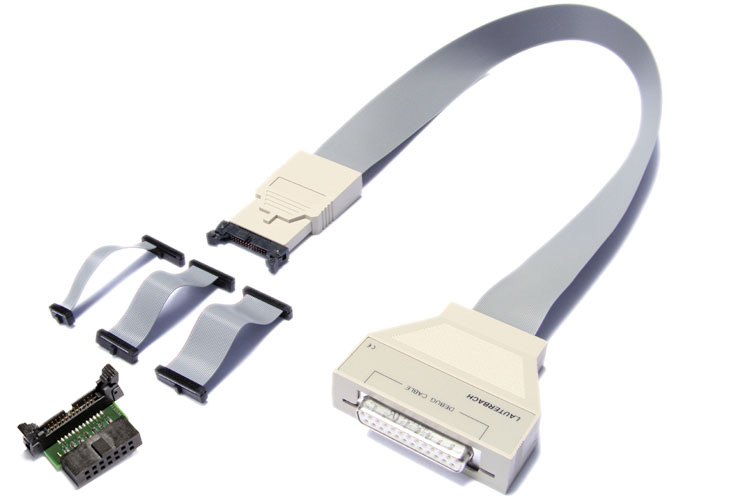

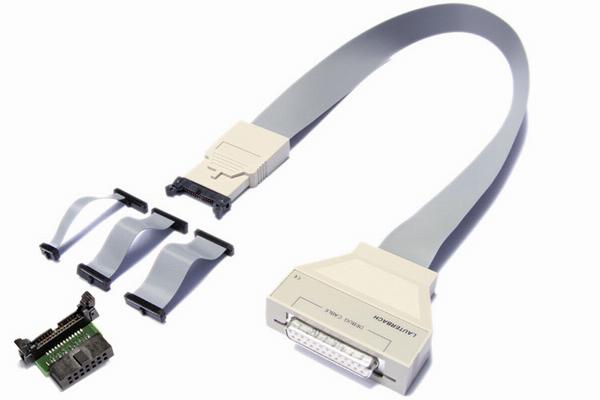

Debugger for RH850/V850 AUTO26 (PACK)
OVERVIEW
Debugger for RH850/V850 AUTO26 (PACK)
Product number:
LA-3205
Supports RH850 via JTAG, LPD4, LPD1 (included ICU-M core).
Supports V850 via NWIRE.
Includes software for Windows, Linux and macOS.
Requires
PowerDebug E40/X50, PowerDebug II or PRO,
PowerDebug Interface USB 2.0/USB 3.0,
PowerDebug Ethernet, PowerTrace Ethernet.

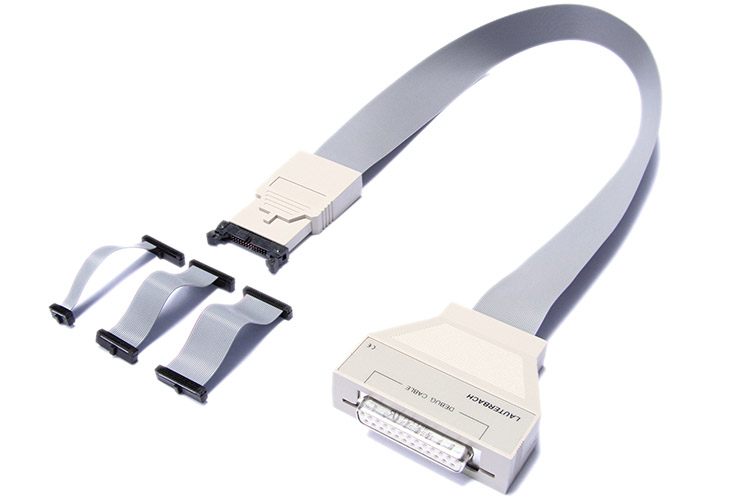

Includes Debug Cable with 26 pin connector (1.8V to 5.0V).

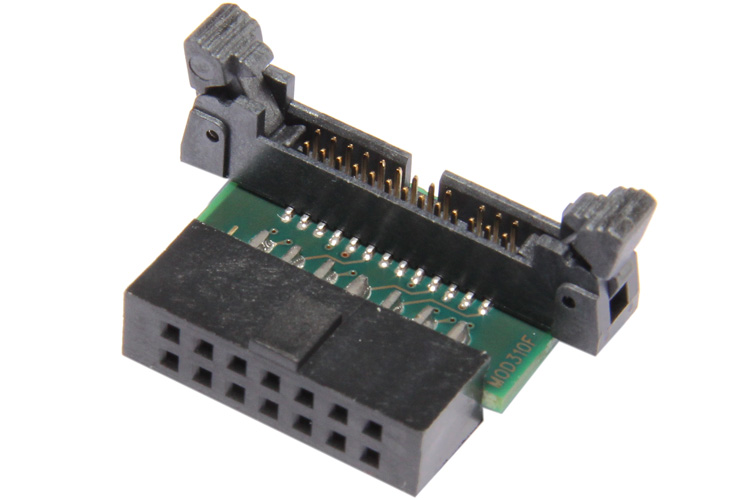

Includes Converter AUTO26 to JTAG14 (LA-2700).
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Debugger for RH850/V850 AUTO26 (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9-A/R/X Add.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-2760A Debugger for dsPIC Add.
- LA-3732A OCDS Debugger for XC800 Additional
- LA-3730A Debug License for MicroBlaze Additional
- LA-7960X License for Multicore Debugging
- LA-7838A Debug License for C6000 Add.
- LA-7753A JTAG Debugger for MPC5xxx (ICD) Additional
- LA-3760A Debug License for Xtensa® Add.
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7847A Debug License for C2000 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-3734X Trace Support for RH850 (Debug Cable/COB)
- LA-2900X License for PIL Simulation (Cable)
